New Test and Measurement Technologies

2012-01-13 | admin

◆sensor, hotwire anemometer and thermometer development

◆pressure-sensitive painting and measurement technology

◆Infrared thermo-measurement technology

◆Phase-change thermo gram technology

◆Liquid crystal display visualization technology

◆Special balance development

◆Quantitative measurement of high-speed flow field

◆Optical measuring technology

◆Phosphorescence thermo-measurement technology

◆Multi-balances test technology

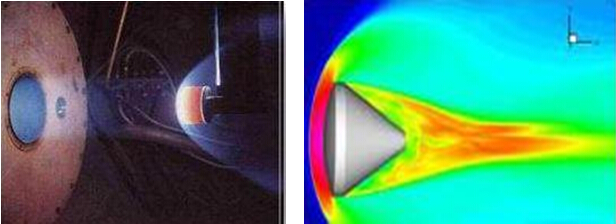

Buried-in Thermocouple Measurement Technique

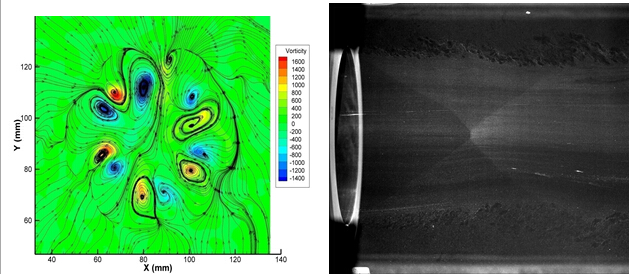

Micro-jet Cross-section Vortex and Streamline Image      Particle Image of Nozzle Exit while Ma=1.5

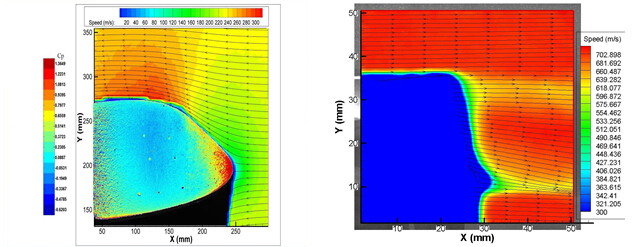

Pressure Distribution Image with PIV Velocity Field                Velocity Distribution and Streamline Image of Jet Nozzle Exit
